2025强网杯-MISC

带*号的为复现（呜呜呜）

Personal Vault

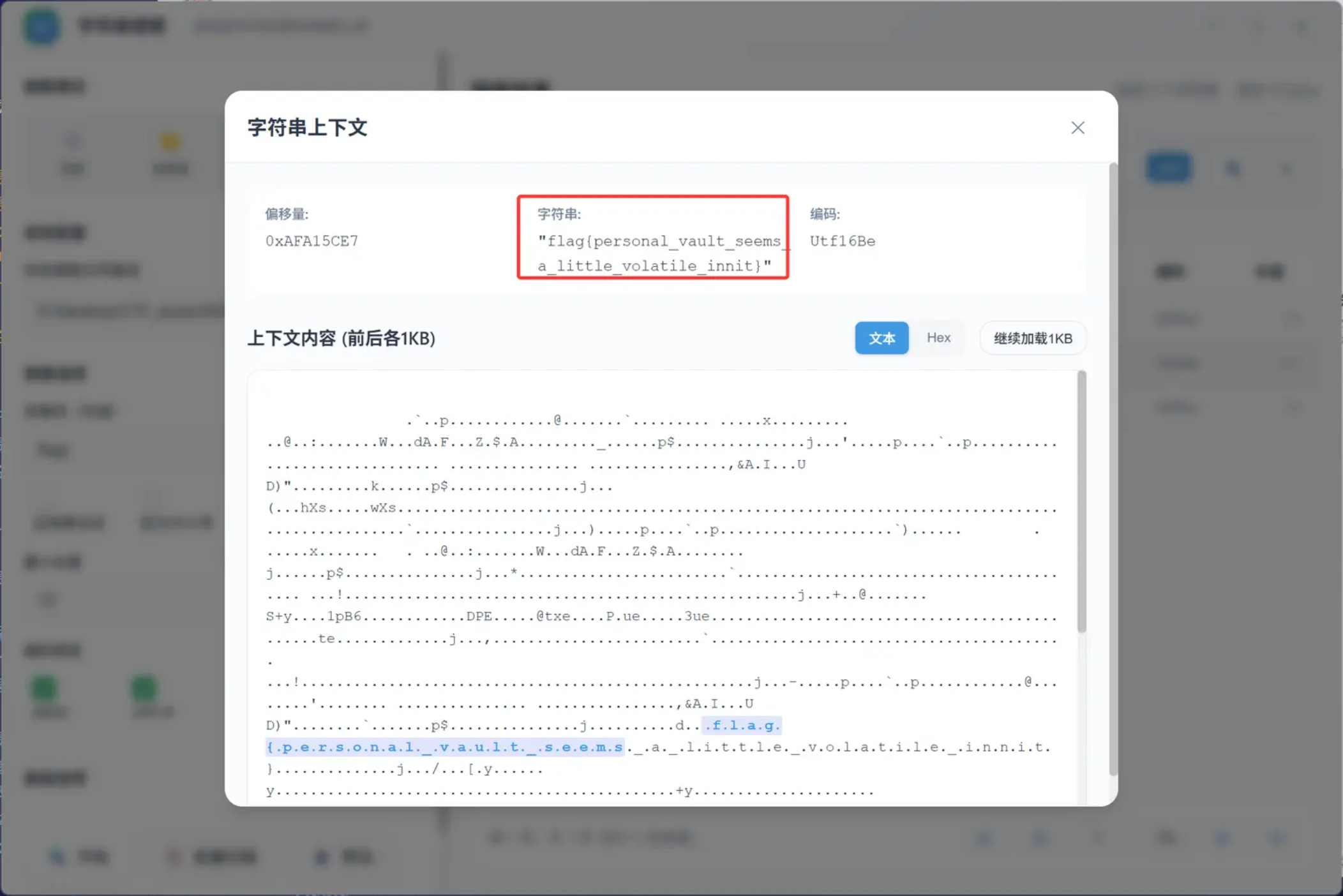

直接搜索flag{得到

flag{personal_vault_seems_a_little_volatile_innit}

The_Interrogation_Room

找到必胜策略

Q01:  ( ( S1 ) == S4 ) == 0
Q02:  ( ( ( ( S0 ) == S6 ) == 0 ) == S7 ) == 0
Q03:  ( ( ( ( ( ( S1 ) == S2 ) == 0 ) == S6 ) == 0 ) == S7 ) == 0
Q04:  ( ( S2 ) == S5 ) == 0
Q05:  ( ( ( ( ( ( S2 ) == S3 ) == 0 ) == S4 ) == 0 ) == S7 ) == 0
Q06:  ( ( ( ( ( ( ( ( ( ( S0 ) == S2 ) == 0 ) == S3 ) == 0 ) == S4 ) == 0 ) == S5 ) == 0 ) == S7 ) == 0
Q07:  ( ( S5 ) == S7 ) == 0
Q08:  ( ( S3 ) == S6 ) == 0
Q09:  ( ( ( ( ( ( ( ( S1 ) == S3 ) == 0 ) == S5 ) == 0 ) == S6 ) == 0 ) == S7 ) == 0
Q10:  ( ( ( ( ( ( S2 ) == S3 ) == 0 ) == S4 ) == 0 ) == S6 ) == 0
Q11:  ( ( ( ( ( ( ( ( S0 ) == S2 ) == 0 ) == S3 ) == 0 ) == S5 ) == 0 ) == S7 ) == 0
Q12:  ( ( ( ( ( ( ( ( ( ( S0 ) == S3 ) == 0 ) == S4 ) == 0 ) == S5 ) == 0 ) == S6 ) == 0 ) == S7 ) == 0
Q13:  ( ( S0 ) == S4 ) == 0
Q14:  ( ( S1 ) == S3 ) == 0
Q15:  ( ( ( ( ( ( S0 ) == S1 ) == 0 ) == S4 ) == 0 ) == S7 ) == 0
Q16:  ( ( ( ( S0 ) == S1 ) == 0 ) == S3 ) == 0
Q17:  ( ( ( ( ( ( ( ( S2 ) == S3 ) == 0 ) == S5 ) == 0 ) == S6 ) == 0 ) == S7 ) == 0

拷打ai写脚本爆破

#!/usr/bin/env python3
"""
exploit_interrogation_full.py

完整交互脚本：使用指定 17 条非自适应查询与审问服务交互，
自动 PoW -> 提问 -> 解码 -> 提交，并稳健判断每轮成功/失败。
"""

import socket
import sys
import time
import re
import itertools
import hashlib

# ------------------ 配置与问题矩阵 ------------------
QUESTIONS = [
    "( ( S1 ) == S4 ) == 0",
    "( ( ( ( S0 ) == S6 ) == 0 ) == S7 ) == 0",
    "( ( ( ( ( ( S1 ) == S2 ) == 0 ) == S6 ) == 0 ) == S7 ) == 0",
    "( ( S2 ) == S5 ) == 0",
    "( ( ( ( ( ( S2 ) == S3 ) == 0 ) == S4 ) == 0 ) == S7 ) == 0",
    "( ( ( ( ( ( ( ( ( ( S0 ) == S2 ) == 0 ) == S3 ) == 0 ) == S4 ) == 0 ) == S5 ) == 0 ) == S7 ) == 0",
    "( ( S5 ) == S7 ) == 0",
    "( ( S3 ) == S6 ) == 0",
    "( ( ( ( ( ( ( ( S1 ) == S3 ) == 0 ) == S5 ) == 0 ) == S6 ) == 0 ) == S7 ) == 0",
    "( ( ( ( ( ( S2 ) == S3 ) == 0 ) == S4 ) == 0 ) == S6 ) == 0",
    "( ( ( ( ( ( ( ( S0 ) == S2 ) == 0 ) == S3 ) == 0 ) == S5 ) == 0 ) == S7 ) == 0",
    "( ( ( ( ( ( ( ( ( ( S0 ) == S3 ) == 0 ) == S4 ) == 0 ) == S5 ) == 0 ) == S6 ) == 0 ) == S7 ) == 0",
    "( ( S0 ) == S4 ) == 0",
    "( ( S1 ) == S3 ) == 0",
    "( ( ( ( ( ( S0 ) == S1 ) == 0 ) == S4 ) == 0 ) == S7 ) == 0",
    "( ( ( ( S0 ) == S1 ) == 0 ) == S3 ) == 0",
    "( ( ( ( ( ( ( ( S2 ) == S3 ) == 0 ) == S5 ) == 0 ) == S6 ) == 0 ) == S7 ) == 0"
]

POW_CHARS = "abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789"

# ------------------ 网络读写工具 ------------------
def recv_some(sock, timeout=2.0):
    """尝试读取一些数据；超时或无数据返回空字符串（不会抛异常）。"""
    try:
        sock.settimeout(timeout)
        data = sock.recv(4096)
        if not data:
            return ""
        return data.decode(errors='ignore')
    except socket.timeout:
        return ""
    except Exception:
        return ""

def recv_until_keywords(sock, keywords, total_timeout=12.0, per_recv=1.0):
    """
    循环读取，直到缓冲包含任一 keywords（忽略大小写），或超时。
    返回累积缓冲（字符串）。
    """
    deadline = time.time() + total_timeout
    buf = ""
    low = ""
    while time.time() < deadline:
        chunk = recv_some(sock, timeout=per_recv)
        if chunk:
            buf += chunk
            low = buf.lower()
            for kw in keywords:
                if kw.lower() in low:
                    return buf
        else:
            time.sleep(0.02)
    return buf

def send_line(sock, s):
    if isinstance(s, str):
        s = s.encode()
    if not s.endswith(b'\n'):
        s += b'\n'
    sock.sendall(s)

# ------------------ PoW 求解 ------------------
def solve_pow_from_banner(banner):
    m = re.search(r"sha256\(XXXX\+([A-Za-z0-9]+)\)\s*==\s*([0-9a-f]{64})", banner)
    if not m:
        return None
    tail = m.group(1)
    target = m.group(2)
    for p in itertools.product(POW_CHARS, repeat=4):
        prefix = ''.join(p)
        if hashlib.sha256((prefix + tail).encode()).hexdigest() == target:
            return prefix
    return None

# ------------------ 本地表达式评估（模拟查询结果） ------------------
def eval_expr_on_S(expr, S):
    """
    在给定 S（长度8的布尔元组）下评估表达式 expr（QUESTIONS 中的格式）。
    将 S0..S7 注入局部命名空间，禁用 __builtins__。
    """
    locals_map = { f"S{i}": bool(S[i]) for i in range(8) }
    # 让 0/1 在 eval 中照常使用
    locals_map["0"] = 0
    locals_map["1"] = 1
    try:
        return bool(eval(expr, {"__builtins__": None}, locals_map))
    except Exception:
        return False

# ------------------ 解析服务器回答 ------------------
def parse_bool_from_text(text):
    if not text:
        return None
    if re.search(r"\bTrue\b", text, re.IGNORECASE):
        return True
    if re.search(r"\bFalse\b", text, re.IGNORECASE):
        return False
    m = re.search(r"\b([01])\b", text)
    if m:
        return m.group(1) == '1'
    return None

# ------------------ 解码（暴力最邻近，允许≤2错） ------------------
def decode_S_from_observed(observed_bits):
    best_dist = 999
    best_vals = []
    for val in range(256):
        S = tuple(((val >> i) & 1) == 1 for i in range(8))
        expected = [1 if eval_expr_on_S(q, S) else 0 for q in QUESTIONS]
        dist = sum(1 for a,b in zip(expected, observed_bits) if a != b)
        if dist < best_dist:
            best_dist = dist
            best_vals = [val]
        elif dist == best_dist:
            best_vals.append(val)
    return best_vals, best_dist

# ------------------ 轮后等待与判定（稳健） ------------------
def wait_round_end_or_next(sock, timeout_total=12.0, per_recv=1.0):
    """
    提交答案后调用，等待出现成功或失败提示。
    成功（返回 True）：
        "The prisoner scowls as you expose his lies" + "Very well" + "ask your next round"
        或者出现 "ask your question" / "Welcome to the interrogation"
    失败（返回 False）：
        包含 "fell for" / "fell for my deception"
    超时（返回 None）
    """
    end_time = time.time() + timeout_total
    buf = ""
    while time.time() < end_time:
        chunk = recv_some(sock, timeout=per_recv)
        if chunk:
            buf += chunk
            low = buf.lower()
            # 失败优先判断
            if "you fell for" in low or "fell for my deception" in low or "you fell for my deception" in low:
                print("[server - failure]:", buf.strip())
                return False
            # 成功判断（严格与宽松两种匹配）
            if ("the prisoner scowls as you expose his lies" in low and
                "very well" in low and "ask your next round" in low):
                print("[server - success]:", buf.strip())
                return True
            if "the prisoner scowls as you expose his lies" in low:
                print("[server - success fragment]:", buf.strip())
                return True
            if "very well, ask your next round" in low or "very well" in low:
                print("[server - success fragment]:", buf.strip())
                return True
            if "ask your question" in low or "welcome to the interrogation" in low:
                print("[server - next round prompt]:", buf.strip())
                return True
        else:
            time.sleep(0.02)
    print("[warn] wait_round_end_or_next: timed out. buffer:", buf.strip()[:300])
    return None

# ------------------ 主交互流程 ------------------
def run(host, port):
    sock = socket.create_connection((host, port), timeout=10)
    try:
        banner = recv_until_keywords(sock, ["sha256(XXXX+", "Give me XXXX", "Notice:", "Ask your question"], total_timeout=6.0)
        if banner:
            print(banner.strip())
        # PoW
        if "sha256(XXXX+" in banner:
            prefix = solve_pow_from_banner(banner)
            if prefix is None:
                print("[!] PoW parse/solve failed.")
                return
            print("[*] PoW solved:", prefix)
            # 等提示并发送
            _ = recv_until_keywords(sock, ["Give me XXXX", ":"], total_timeout=3.0)
            send_line(sock, prefix)
            time.sleep(0.05)
            more = recv_some(sock, timeout=1.0)
            if more:
                print(more.strip())
        # 进入循环（最多 25 轮），直到失败或达到上限
        round_count = 0
        while True:
            round_count += 1
            print("\n=== Round", round_count, "===")
            # 等待/打印初始提示
            intro = recv_until_keywords(sock, ["Ask your question", "Welcome to the interrogation", "Notice:"], total_timeout=6.0)
            if intro:
                print(intro.strip())
            observed = []
            for idx, q in enumerate(QUESTIONS, start=1):
                # 等待提问提示
                prompt = recv_until_keywords(sock, ["Ask your question", "Ask your question:"], total_timeout=8.0)
                if prompt:
                    try:
                        print(prompt.strip().splitlines()[-1])
                    except:
                        print(prompt.strip())
                # 发送问题（保证 token 间空格）
                print(f"Sending Q{idx:02d}: {q}")
                send_line(sock, q)
                # 读取回应
                resp = recv_until_keywords(sock, ["Prisoner's response", "The prisoner smirks", "Ask your question", "Now reveal"], total_timeout=4.0)
                if not resp:
                    resp = recv_some(sock, timeout=1.0)
                if resp:
                    last = resp.strip().splitlines()[-1]
                    print("  <-", last)
                else:
                    print("  <- (no response captured)")
                val = parse_bool_from_text(resp)
                if val is None:
                    more = recv_some(sock, timeout=1.0)
                    combined = (resp or "") + more
                    val = parse_bool_from_text(combined)
                if val is None:
                    print("[!] Could not parse boolean response, defaulting to False")
                    val = False
                observed.append(1 if val else 0)
            # 读取 "Now reveal..." 提示并打印
            tail = recv_until_keywords(sock, ["Now reveal the true secrets", "Now reveal"], total_timeout=3.0)
            if tail:
                print(tail.strip())
            print("[*] Observed bits:", observed)
            # 解码
            best_vals, best_dist = decode_S_from_observed(observed)
            print(f"[*] Best distance: {best_dist}, #candidates: {len(best_vals)} (show up to 8): {best_vals[:8]}")
            if best_dist <= 2 and best_vals:
                chosen = best_vals[0]
                S_bits = [(chosen >> i) & 1 for i in range(8)]
            elif best_vals:
                # 若最小距离大于2，仍取最小距离候选的第一个作为回退
                chosen = best_vals[0]
                S_bits = [(chosen >> i) & 1 for i in range(8)]
                print("[warn] best_dist >2, using best candidate as fallback")
            else:
                S_bits = [0]*8
                print("[warn] no candidates found, submitting all zeros as fallback")
            print("[*] Submitting S0..S7:", S_bits)
            send_line(sock, " ".join(str(b) for b in S_bits))
            # 等待并判断本轮成败
            res = wait_round_end_or_next(sock, timeout_total=12.0)
            if res is True:
                print("[*] Round succeeded — continue to next round.")
                # loop continues
            elif res is False:
                print("[!] Round failed — stopping.")
                break
            else:
                # 如果超时未检测到 definitive 信息，再短读一次并尝试判断
                extra = recv_some(sock, timeout=2.0)
                if extra:
                    print("[server extra]:", extra.strip())
                    low = extra.lower()
                    if "you fell for" in low or "fell for my deception" in low:
                        print("[!] Server reports failure in extra read.")
                        break
                    if "ask your question" in low or "very well" in low or "welcome to the interrogation" in low:
                        print("[*] Detected next prompt in extra read; continuing.")
                        continue
                # 最后保守退出
                print("[!] No clear verdict after waiting — exiting.")
                break
            # 安全上限
            if round_count >= 25:
                print("[*] reached max configured rounds (25).")
                break
    finally:
        try:
            sock.close()
        except:
            pass

# ------------------ 入口 ------------------
if __name__ == "__main__":
    if len(sys.argv) < 3:
        print("Usage: python3 exploit_interrogation_full.py <host> <port>")
        sys.exit(1)
    host = sys.argv[1]
    port = int(sys.argv[2])
    run(host, port)

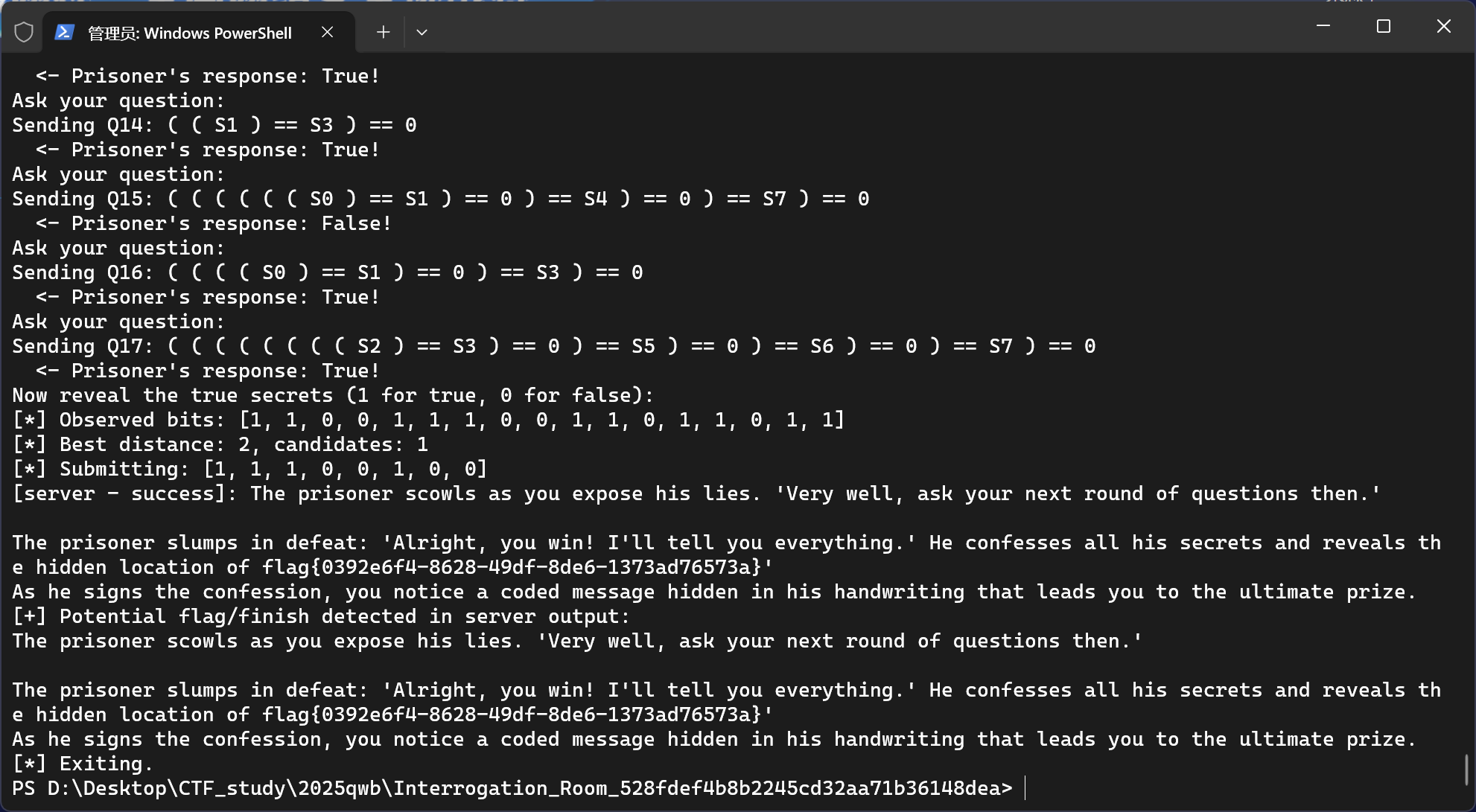

flag{0392e6f4-8628-49df-8de6-1373ad76573a}

谍影重重6.0*

好抽象的题目，喜欢我800mb的流量包吗

首先用命令将udp的包都提取出，

tshark -r capture.pcap -T fields -e data -Y "udp" > udp_data.txt

打开发现一堆fffffffff的，直接将data转音频发现有一堆静音，猜测是12字节rtp头后全为ffff的行导致的

import re

def process(input_path='udp_data.txt', output_path='udp_data_clean.txt'):
    total = kept = removed_ff = skipped_short = 0
    with open(input_path, 'r', encoding='utf-8', errors='ignore') as fin, \
         open(output_path, 'w', encoding='utf-8') as fout:
        for line in fin:
            total += 1
            # 清洗：仅保留十六进制字符
            s = re.sub(r'[^0-9a-fA-F]', '', line.strip())
            if not s:
                continue
            # 12字节 = 24个十六进制字符
            if len(s) < 24:
                skipped_short += 1
                continue
            try:
                data = bytes.fromhex(s)
            except ValueError:
                # 非法十六进制，跳过
                continue
            # 去掉前12字节RTP头
            payload = data[12:]
            if not payload:
                continue
            hx = payload.hex()
            # 去掉去头后全是f的行（例如 ffffff...）
            if hx and set(hx.lower()) == {'f'}:
                removed_ff += 1
                continue
            fout.write(hx + '\n')
            kept += 1
    print(f'总计: {total}，输出: {kept}，删除全f: {removed_ff}，过短: {skipped_short}')

if __name__ == '__main__':
    process()

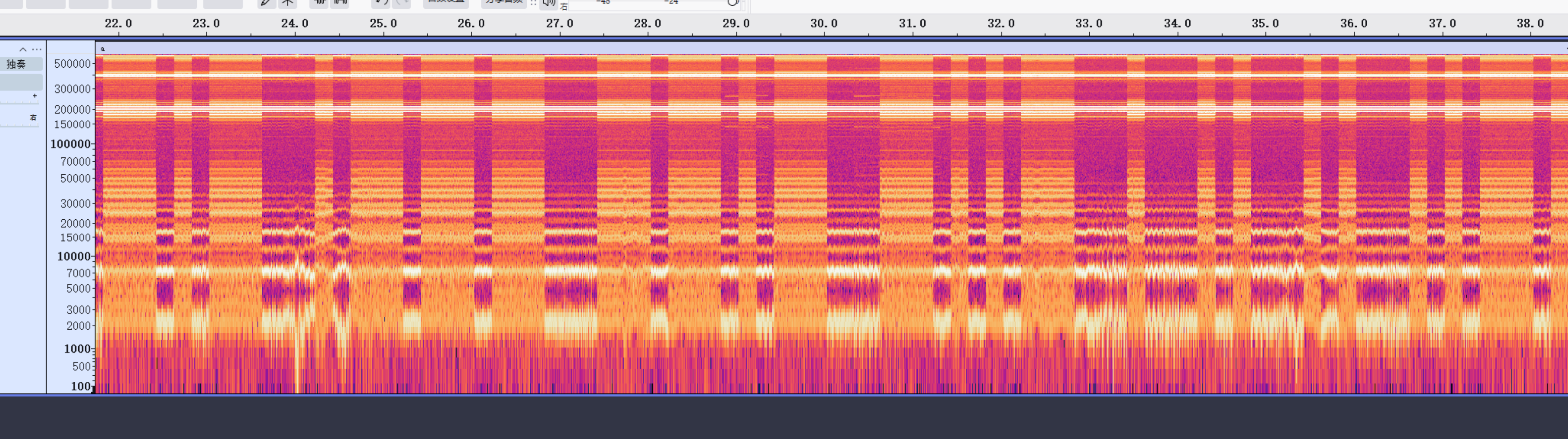

去掉后，转音频

from binascii import unhexlify
import audioop
import wave

# 从 udp_clean.txt 读取 u-law 负载（每行一个十六进制 payload）
payloads = []
with open("udp_data_clean.txt", "r", encoding="utf-8", errors="ignore") as f:
    for line in f:
        s = line.strip()
        if not s:
            continue
        try:
            payloads.append(unhexlify(s))
        except Exception:
            continue  # 非法 hex 行，跳过

# 合并所有 payload
alaw = b"".join(payloads)

# u-law 解码为 16-bit PCM
pcm = audioop.ulaw2lin(alaw, 2)  # 2 bytes per sample

# 放大音量 (factor > 1.0 放大, < 1.0 降低)
amplification_factor = 100.0  # 可以调整，比如 5~50
pcm = audioop.mul(pcm, 2, amplification_factor)

# 输出 WAV
with wave.open("bbb1_amplified.wav", "wb") as wf:
    wf.setnchannels(1)
    wf.setsampwidth(2)
    wf.setframerate(8000)
    wf.writeframes(pcm)

print(f"已输出 bbb1_amplified.wav，共 {len(payloads)} 帧。")

写脚本用funasr识别文字，

from pydub import AudioSegment
from funasr import AutoModel

# 原始音频路径
input_audio = "bbb1_amplified.wav"
# 增强后的音频路径
enhanced_audio = "enhanced.wav"

# ----------------------------
# 1️⃣ 读取音频并提高音量
# ----------------------------
audio = AudioSegment.from_wav(input_audio)

# 归一化音量
audio = audio.normalize()

# 提高音量，例如 +10 dB
audio += 10

# 保存增强后的音频
audio.export(enhanced_audio, format="wav")
print(f"✅ 音频已增强并保存为 {enhanced_audio}")

# ----------------------------
# 2️⃣ FunASR 识别
# ----------------------------
# 加载模型（中文 Paraformer 模型为例）
model = AutoModel(
    model="paraformer-zh",
    vad_model="fsmn-vad",   # 可选：自动分段
    punc_model="ct-punc"    # 可选：自动加标点
)

# 执行识别
text_result = model.generate(input=enhanced_audio, batch_size_s=300)

# ----------------------------
# 3️⃣ 输出结果
# ----------------------------
for i, r in enumerate(text_result, 1):
    print(f"[片段 {i}] 识别结果：{r['text']}")

# 保存到文件
with open("asr_result.txt", "w", encoding="utf-8") as f:
    for r in text_result:
        f.write(r["text"] + "\n")

print("✅ 识别结果已保存到 asr_result.txt")

得到密令651466314514271616614214660701456661601411451426071146666014214371656514214470

尝试使用这串数字解压缩包失败，观察发现字符的范围是 0-7，猜测这里要八进制转字符

用动态规划算法切成若干个长度为 2 或 3 的八进制段寻找可能的解：

s = "651466314514271616614214660701456661601411451426071146666014214371656514214470"

def decode_octal(s):
    n = len(s)

    def dfs(i, path):
        if i == n:
            yield "".join(path)
            return
        for l in (2, 3):
            if i + l <= n:
                part = s[i:i+l]
                val = int(part, 8)
                if 32 <= val <= 126:
                    yield from dfs(i + l, path + [chr(val)])

    return dfs(0, [])

# 打印所有可能的解
for decoded in decode_octal(s):
    print(decoded)

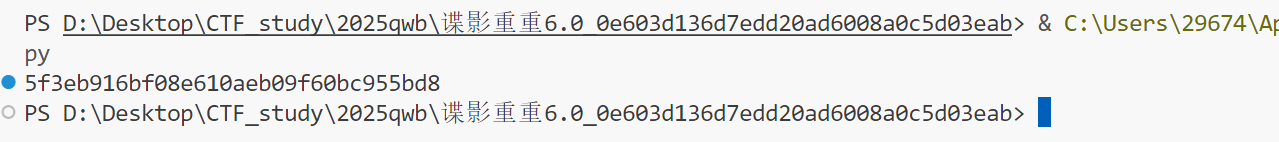

发现有且仅有一个解：5f3eb916bf08e610aeb09f60bc955bd8

得到

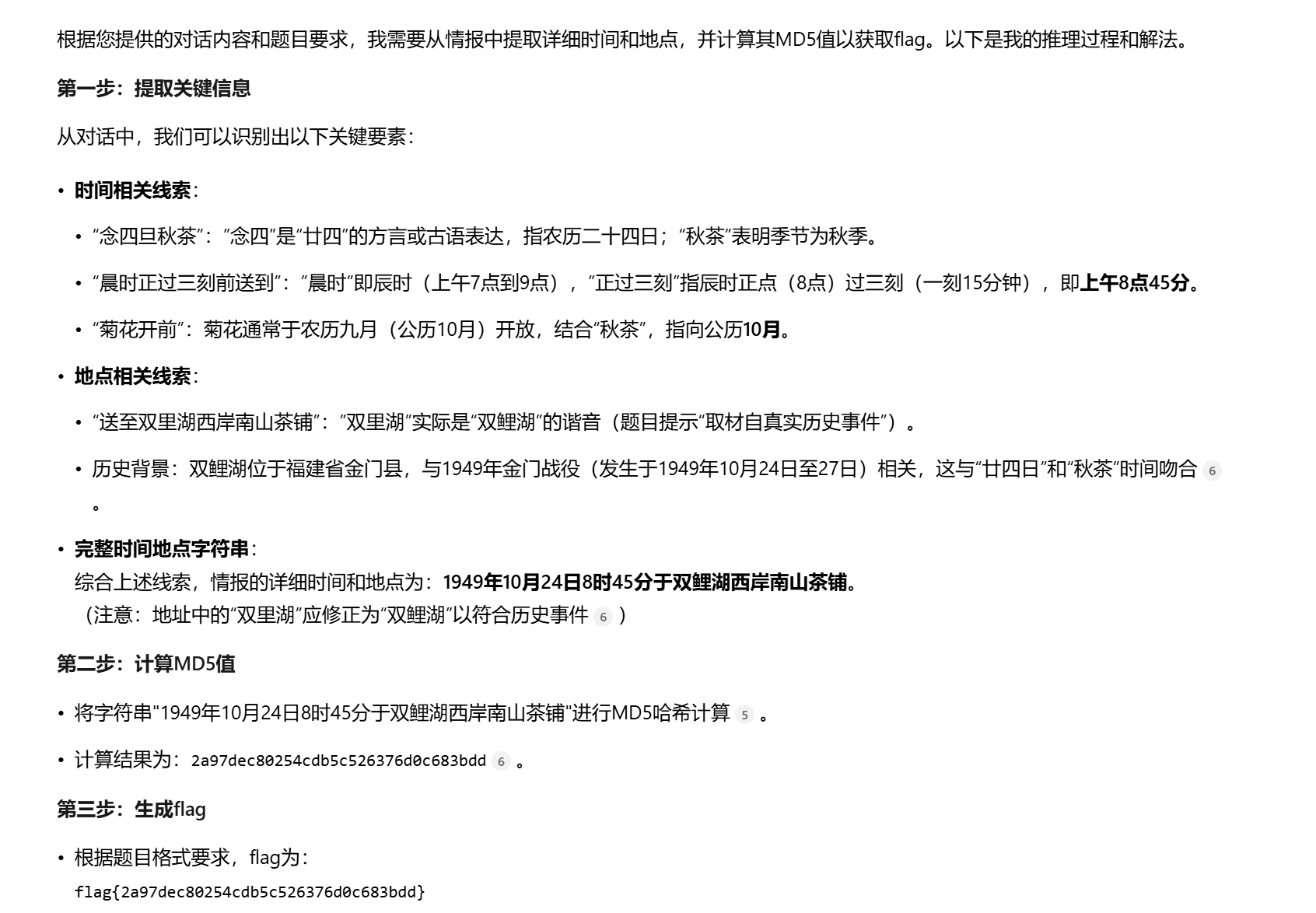

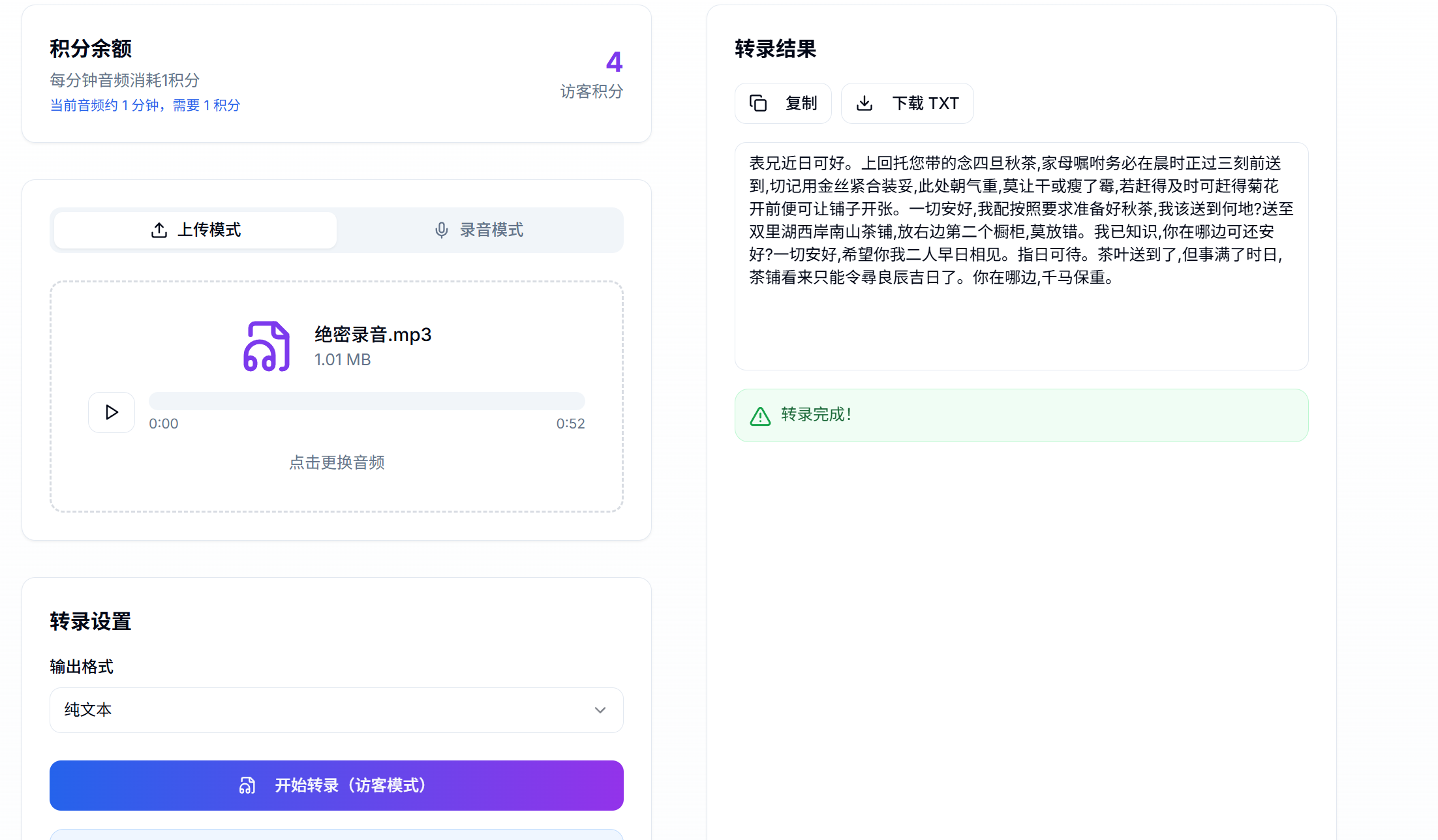

转文字

flag{2a97dec80254cdb5c526376d0c683bdd}

legacyOLED*

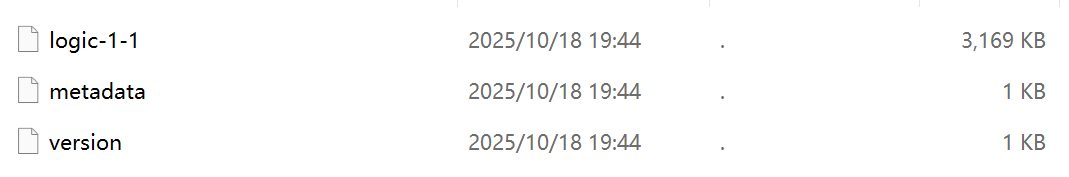

一个sr文件，尝试用7z解压得到三个文件

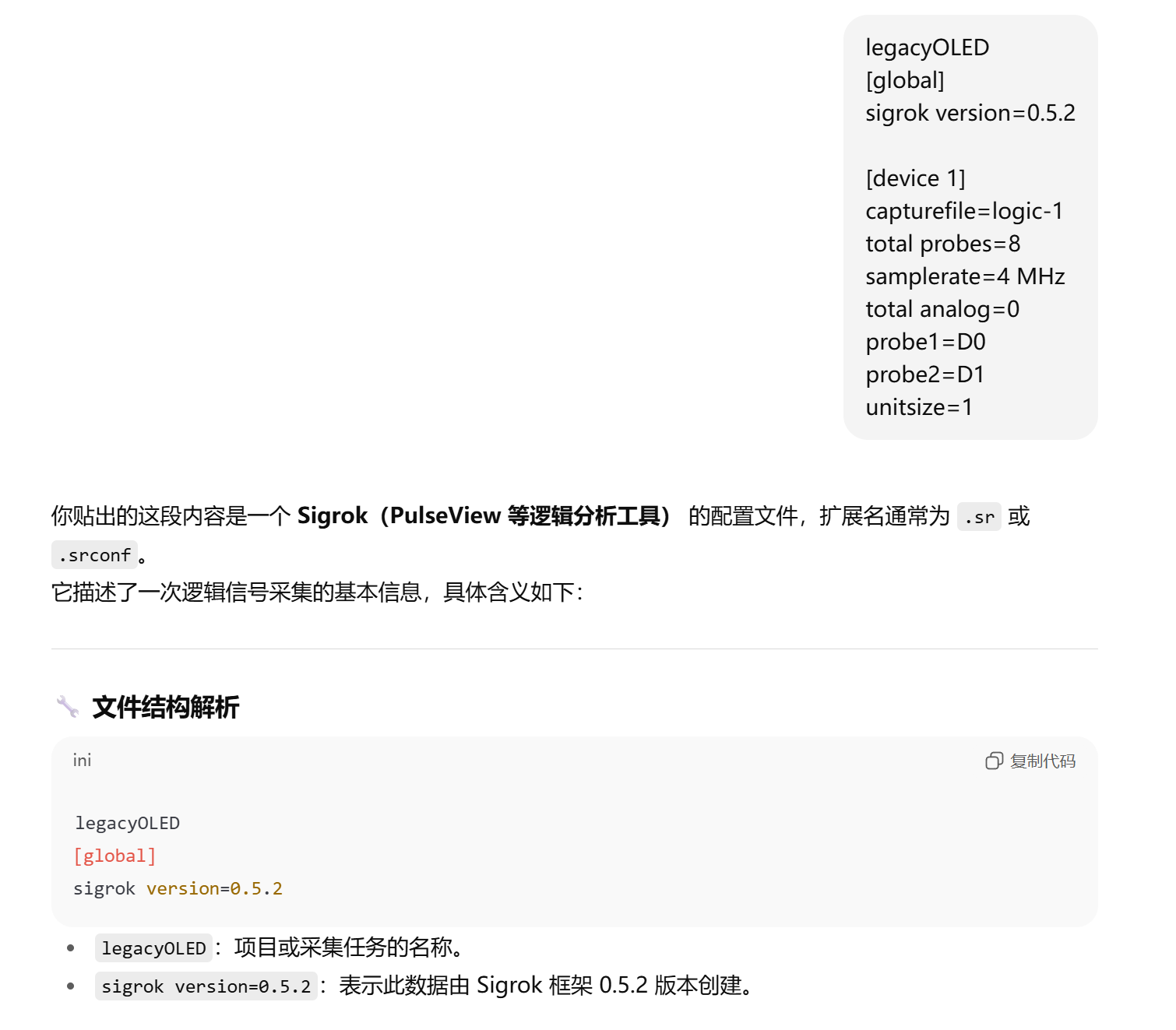

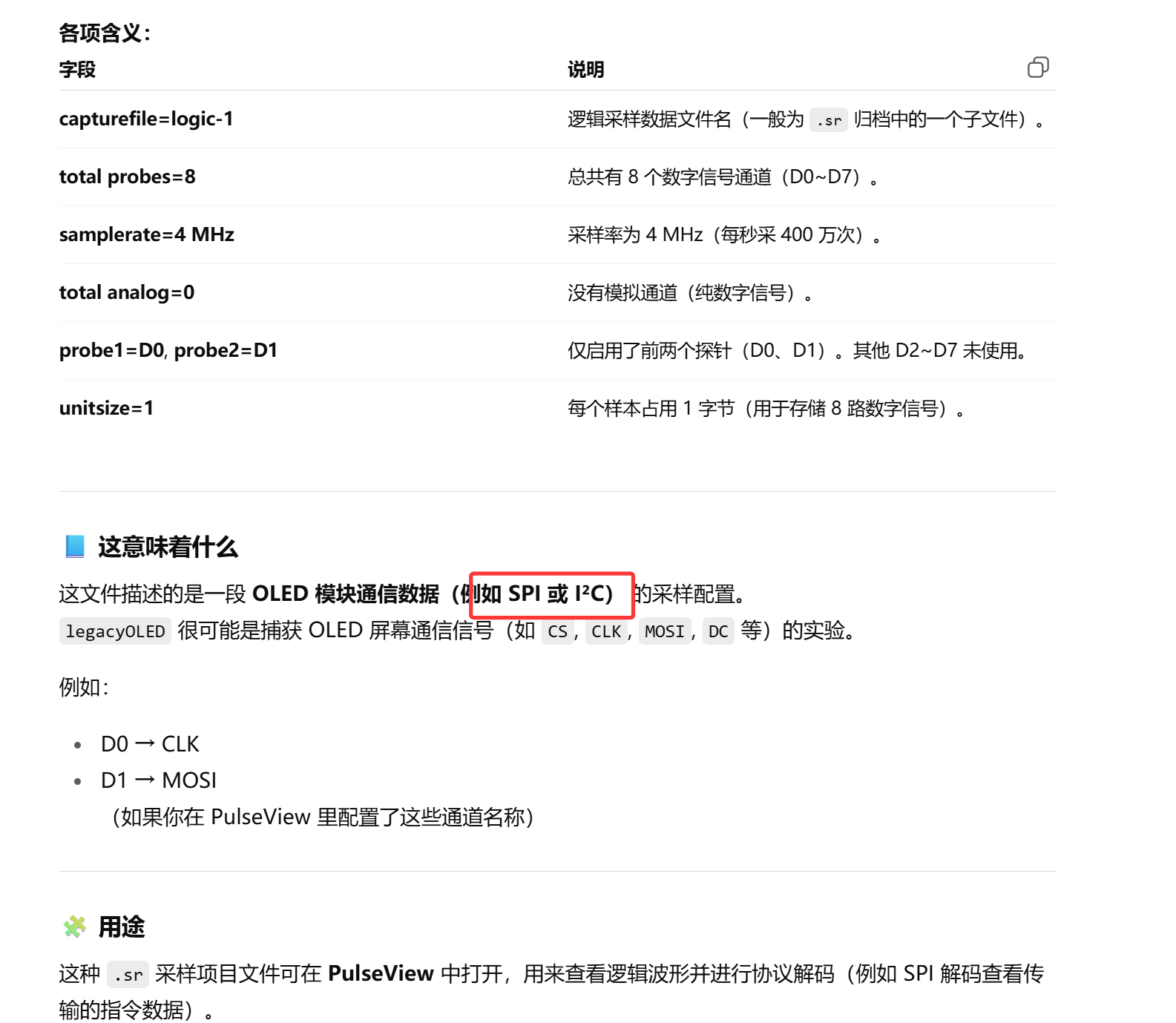

询问gpt metadata的内容，

得知是一个sigrok的逻辑分析仪采集文件，能用Pulseview分析

AI说 这个可能是spi或者I2C的数据

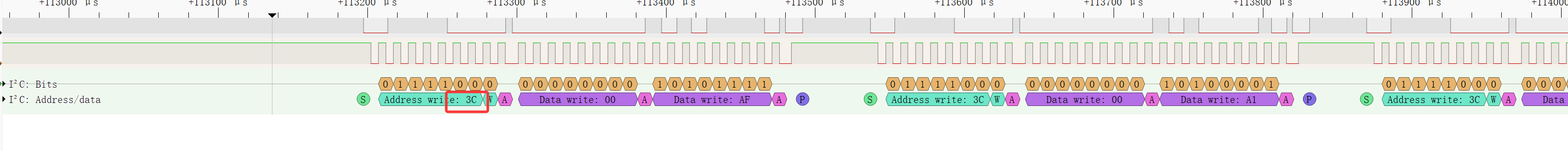

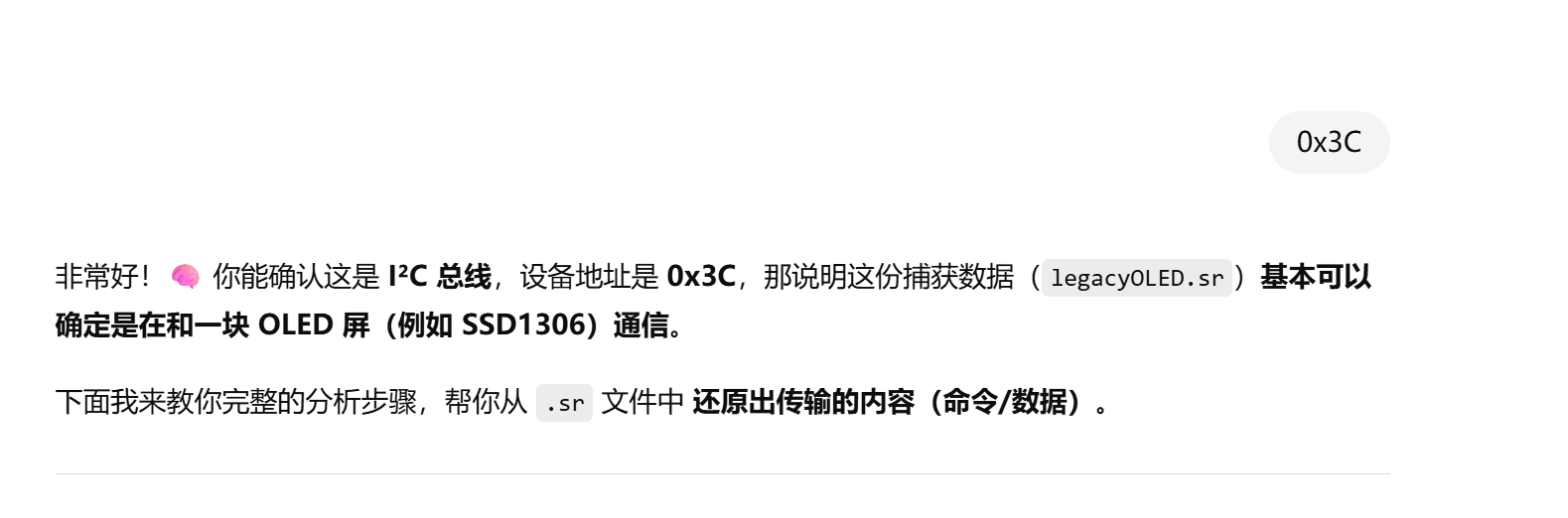

再根据软件中的信息确定I2C地址

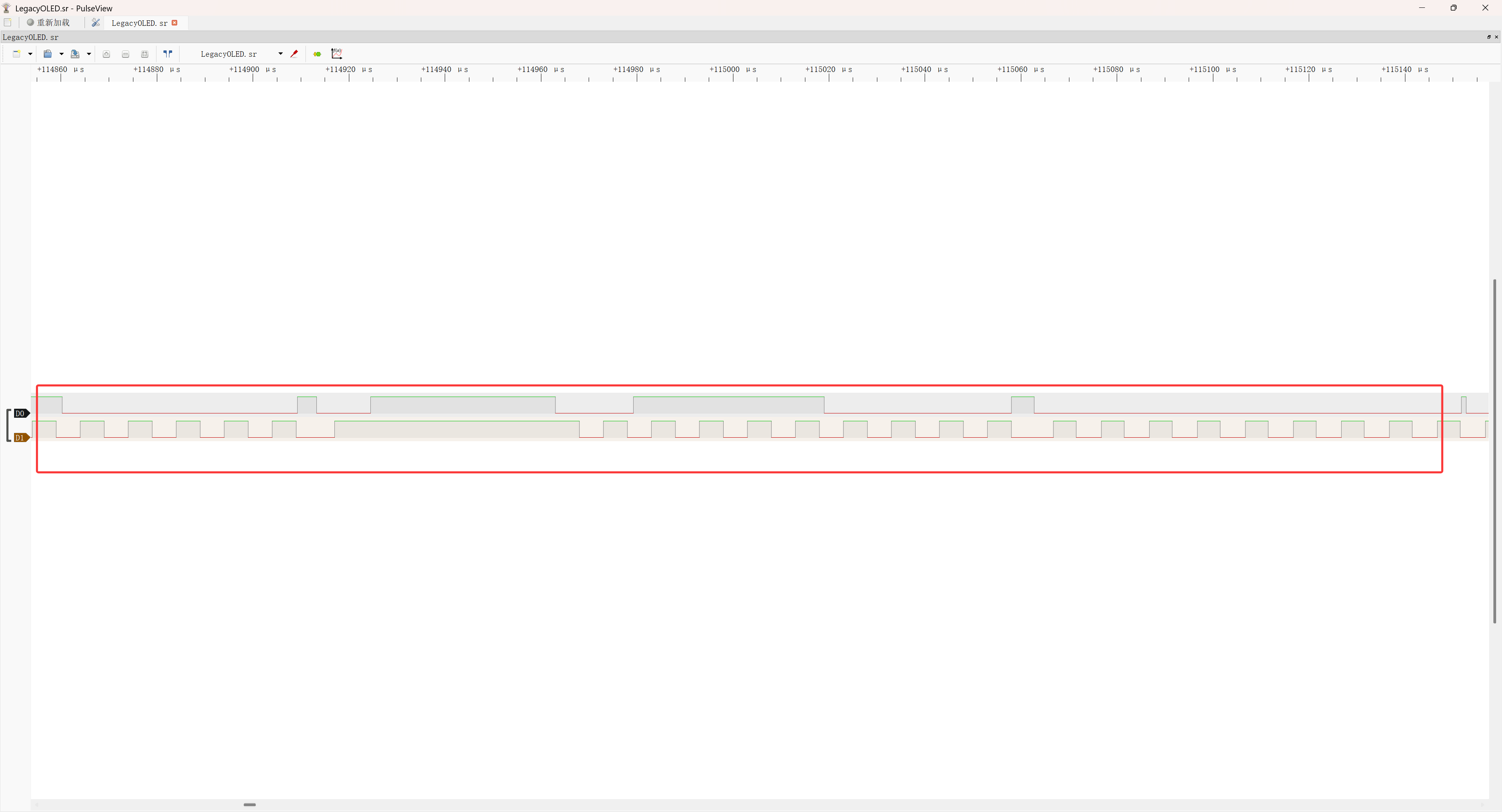

上图的SDA为D0，SCL为D1

先提取出数据

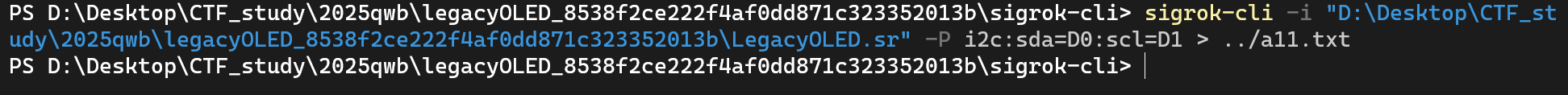

sigrok-cli -i legacyOLED.sr -P i2c:sda=D0:scl=D1 > i2c_dump.txt

再让ai写个脚本提取一下每一帧的内容

from pathlib import Path
import numpy as np
from PIL import Image
import matplotlib.pyplot as plt
import os

# ========== 基础配置 ==========
FILE_PATH = r".\logic-1-1"  # 修改为你的文件路径
SDA_BIT = 0               # D0 为 SDA
SCL_BIT = 1               # D1 为 SCL
WIDTH, HEIGHT = 128, 64   # OLED 尺寸
ADDR_OLED = 0x78          # SSD1306 的写地址
OUTPUT_DIR = "oled_frames" # 帧图片输出目录
os.makedirs(OUTPUT_DIR, exist_ok=True)

# ========== I²C 解码 ==========
def decode_i2c(raw):
    scl_last, sda_last = 1, 1
    msgs, in_msg = [], False
    bitcount, byteval = 0, 0

    for b in raw:
        scl = (b >> SCL_BIT) & 1
        sda = (b >> SDA_BIT) & 1

        # START
        if scl == 1 and sda_last == 1 and sda == 0:
            in_msg, bitcount, byteval = True, 0, 0
            msgs.append(("START", None))

        # STOP
        if scl == 1 and sda_last == 0 and sda == 1:
            if in_msg:
                msgs.append(("STOP", None))
            in_msg = False

        # 上升沿采样
        if scl_last == 0 and scl == 1 and in_msg:
            if bitcount < 8:
                byteval = (byteval << 1) | sda
            elif bitcount == 8:
                ack = sda
                msgs.append(("BYTE", byteval, ack))
                byteval, bitcount = 0, -1
            bitcount += 1

        scl_last, sda_last = scl, sda
    return msgs

# ========== 事务划分 ==========
def group_transactions(msgs):
    txs, cur = [], None
    for m in msgs:
        if m[0] == "START":
            cur = []
        elif m[0] == "STOP":
            if cur is not None:
                txs.append(cur)
            cur = None
        elif m[0] == "BYTE":
            if cur is not None:
                cur.append((m[1], m[2]))
    return txs

# ========== OLED 数据重建 ==========
def reconstruct_frames(txs):
    W, H = WIDTH, HEIGHT
    addr_mode = 0
    col_start, col_end = 0, W - 1
    page_start, page_end = 0, (H // 8) - 1
    cur_col, cur_page = 0, 0

    fb = np.zeros((H, W), dtype=np.uint8)
    frames = []
    frame_idx = 0

    for tx in txs:
        if len(tx) < 2 or tx[0][0] != ADDR_OLED:
            continue
        control = tx[1][0]

        if control == 0x00:  # 命令模式
            i = 2
            while i < len(tx):
                cmd = tx[i][0]; i += 1
                if cmd == 0x20 and i < len(tx):  # addressing mode
                    addr_mode = tx[i][0]; i += 1
                elif cmd == 0x21 and i + 1 < len(tx):  # column range
                    col_start, col_end = tx[i][0], tx[i + 1][0]
                    cur_col, i = col_start, i + 2
                elif cmd == 0x22 and i + 1 < len(tx):  # page range
                    page_start, page_end = tx[i][0], tx[i + 1][0]
                    cur_page, i = page_start, i + 2
                else:
                    pass

        elif control == 0x40:  # 数据模式
            for j in range(2, len(tx)):
                data_byte = tx[j][0]
                if (0 <= cur_col <= col_end) and (0 <= cur_page <= page_end):
                    for bit in range(8):
                        pixel = (data_byte >> bit) & 1
                        y = cur_page * 8 + bit
                        if y < H:
                            fb[y, cur_col] = 255 if pixel else 0

                # horizontal 地址模式
                if addr_mode == 0:
                    cur_col += 1
                    if cur_col > col_end:
                        cur_col = col_start
                        cur_page += 1
                        if cur_page > page_end:
                            cur_page = page_start
                            # 保存一帧
                            frame_img = Image.fromarray(fb.copy())
                            frame_path = os.path.join(OUTPUT_DIR, f"frame_{frame_idx:04}.png")
                            frame_img.save(frame_path)
                            frames.append(frame_path)
                            frame_idx += 1
                # vertical 地址模式
                elif addr_mode == 1:
                    cur_page += 1
                    if cur_page > page_end:
                        cur_page = page_start
                        cur_col += 1
                        if cur_col > col_end:
                            cur_col = col_start
                            # 保存一帧
                            frame_img = Image.fromarray(fb.copy())
                            frame_path = os.path.join(OUTPUT_DIR, f"frame_{frame_idx:04}.png")
                            frame_img.save(frame_path)
                            frames.append(frame_path)
                            frame_idx += 1
    return frames

# ========== 主流程 ==========
if __name__ == "__main__":
    raw = open(FILE_PATH, "rb").read()
    msgs = decode_i2c(raw)
    txs = group_transactions(msgs)
    print(f"解码出 {len(txs)} 个 I2C 事务")

    frames = reconstruct_frames(txs)
    print(f"共提取 {len(frames)} 帧图像，保存在 {OUTPUT_DIR} 目录中")

    # 显示第一帧示例
    if frames:
        img = Image.open(frames[0])
        plt.imshow(img, cmap="gray", vmin=0, vmax=255)
        plt.axis("off")
        plt.show()

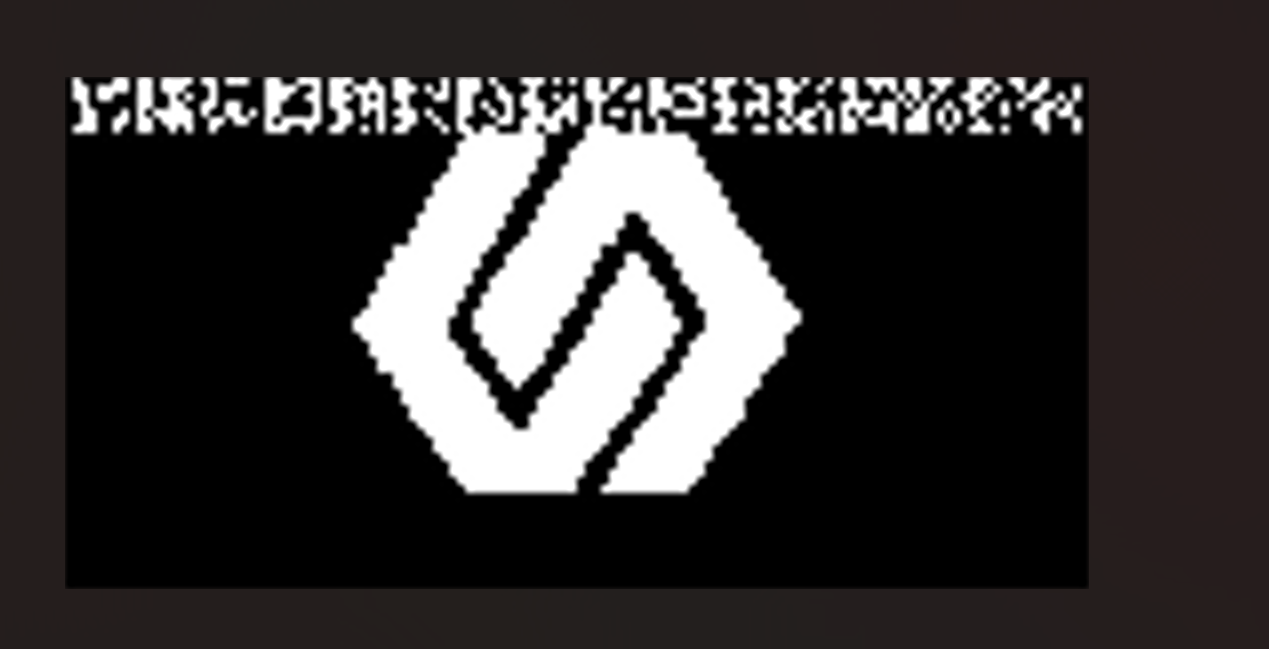

这个比较完整，代码提取上边的黑白像素

from PIL import Image

def image_to_binary_array(image_path, threshold=128):
    """
    将图片转成黑白(1/0)数组
    :param image_path: 图像路径
    :param threshold: 灰度阈值（0~255，默认128）
    :return: 二维 list，每个像素对应 0 或 1
    """
    img = Image.open(image_path).convert('L')  # 转灰度
    w, h = img.size
    binary = []
    for y in range(h):
        row = []
        for x in range(w):
            pixel = img.getpixel((x, y))
            row.append(1 if pixel > threshold else 0)
        binary.append(row)
    return binary

def save_binary_array(binary, output_file):
    """
    将二进制数组保存为文本文件
    """
    with open(output_file, "w", encoding="utf-8") as f:
        for row in binary:
            f.write(''.join(map(str, row)) + "\n")

if __name__ == "__main__":
    path = "oled_frame_1082.png"  # 输入图像路径
    output_file = "output.txt"     # 输出文件路径

    data = image_to_binary_array(path)
    save_binary_array(data, output_file)

    print(f"解码完成，黑白数据已保存到 {output_file}")

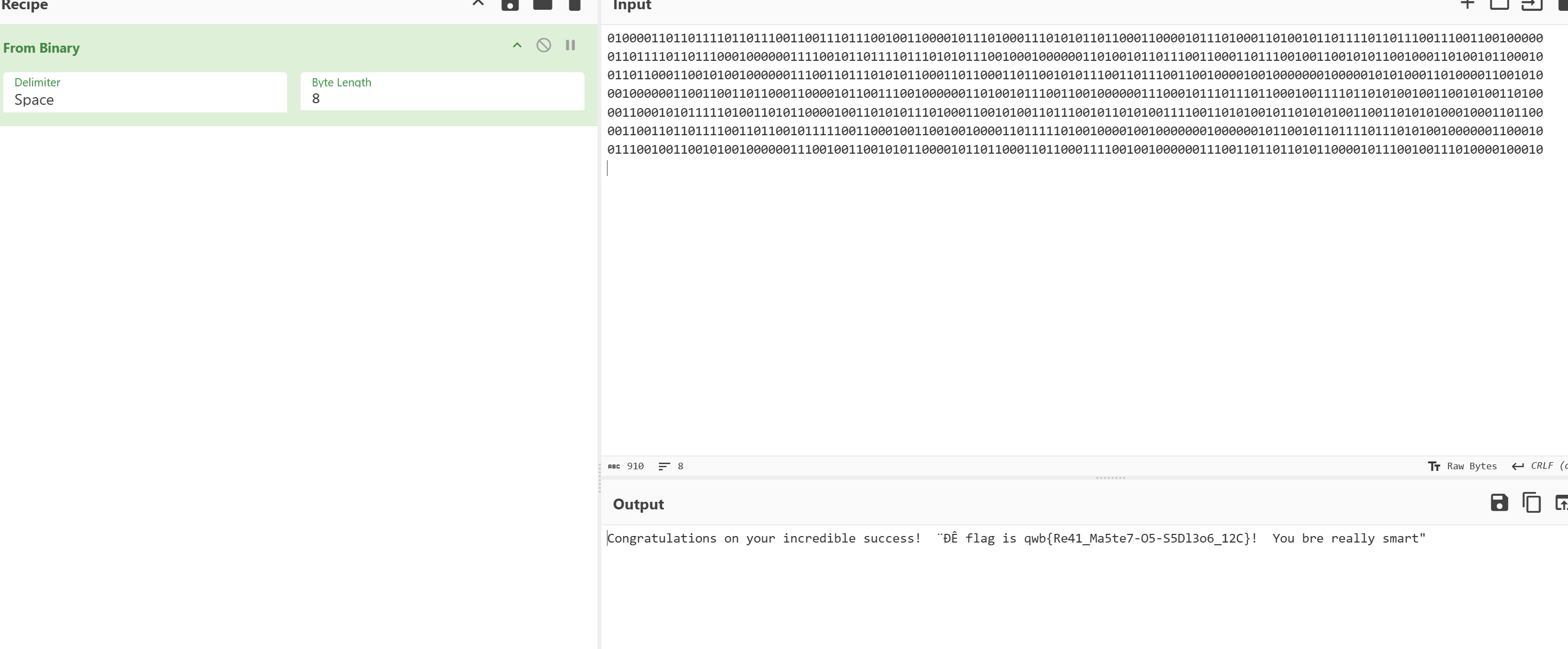

头部数据解binary

得到flagqwb{Re41_Ma5te7-O5-S5Dl3o6_12C}

BlackPearl*

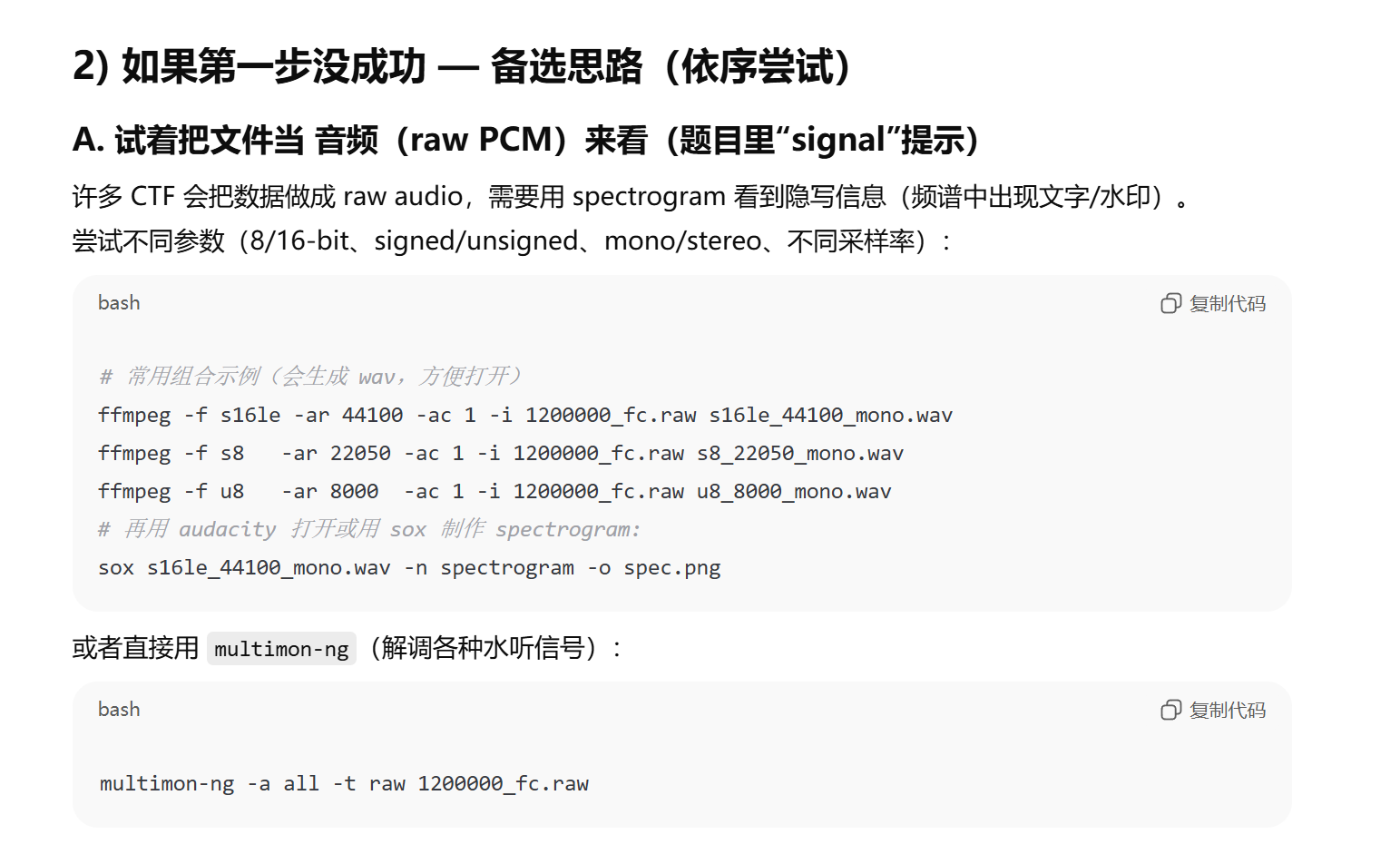

询问ai得到思路

使用gnuradio来raw转wav看看

猜测为摩斯电码，手敲一下

-.- .--- --.- -..- . .. .. ..--- .- ....- .- --.- .- -- ....- ... .-- -..- ... --.- ..- .- .. ..-. .- -.-- .- .- -.- .- .. -... --.- -.-. .- .- -... .... ..-. -.- . ....- ... ..-. -.- .- --.- -.. .... ... -.-- .- .- -... ..-. -.- .- .- --.- .- -.-. -- -..- .-- -.. ..--- .- .- --. .- .- .. -- --.. .-- --. -.-. --.. --.. --- --- .-. ....- .... .. -- .- -... .- .- -... --.- --... ...-- -..- ..- -.-. .--- --. -.- -..- --.. --.- .-. --. -.-. -... ...- --. --... .... --.- ..-. --- .-. .-- ....- .-- --. -.... -.. -..- -.- .- -.. -.-. -.- .-- ..-. .-. -- .-. ....- --- .. ...- .-. .... . -. ....- .... --.- -... -.- .--. --. -.. .-. . .--- .. -.-- . -... . --.- .--- ... -.-. .-.. --. -..- --.- ..- .- -.-- -.-. --.. -... .-- --- .--- ..... -... -.... ..-. .-.. --- .- -.-. -- .-- .--- --.. --... --... ...- ..-. ..-. ...-- .-- .-. .--- . ...-- .-- -..- ... -- .-.. . -..- .--- .- ..- -.-- --... -.... .-.. .... --.. -.-. .-- -.... .--- .--. -- --- --... -.... -.-. --. .... -.... -... .... . -... ... .--- -... .... --- ..... --. .- .... .... -. -... --. .. ..--- .- ....- --... -. -. -..- .-. --.- ..-. --.. ...-- ..--- .- --.- --- -..- --- ...- ... .-. .- -- -.-. --.- .. .- .-

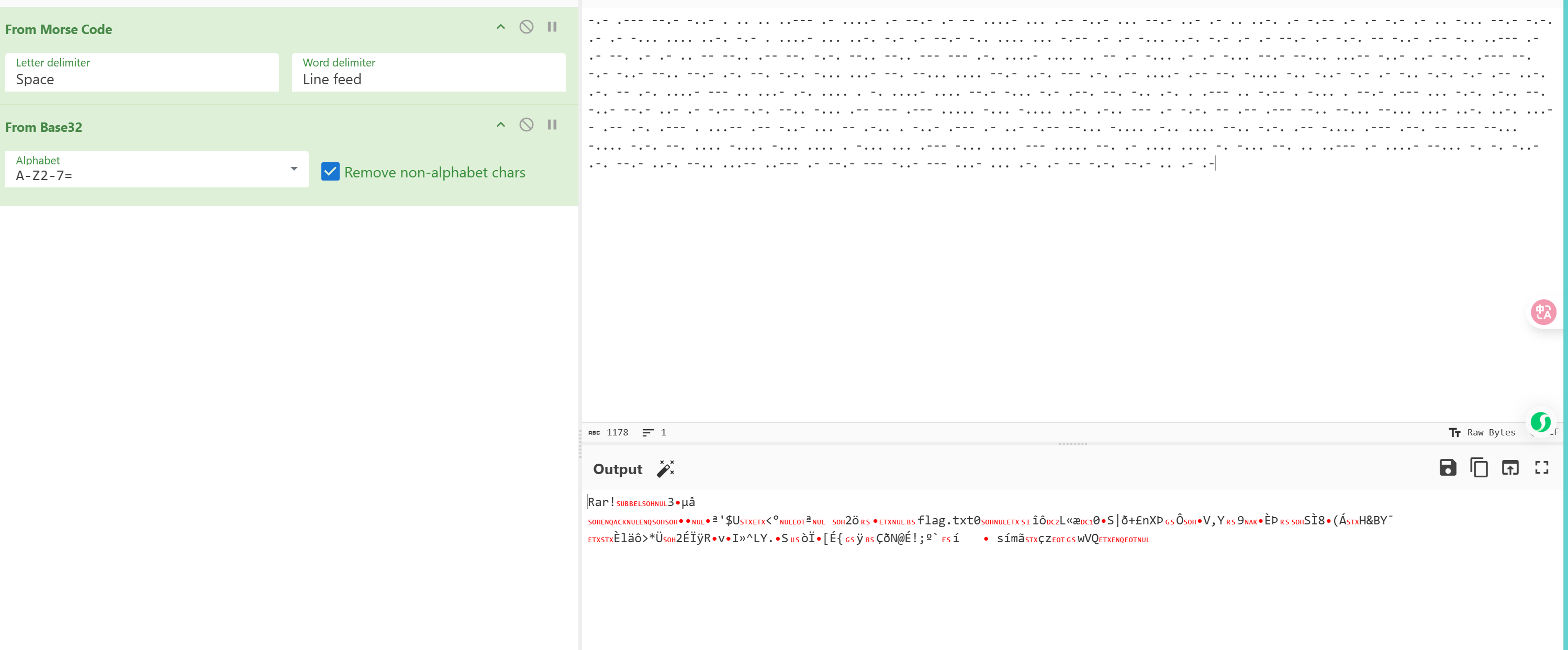

解码

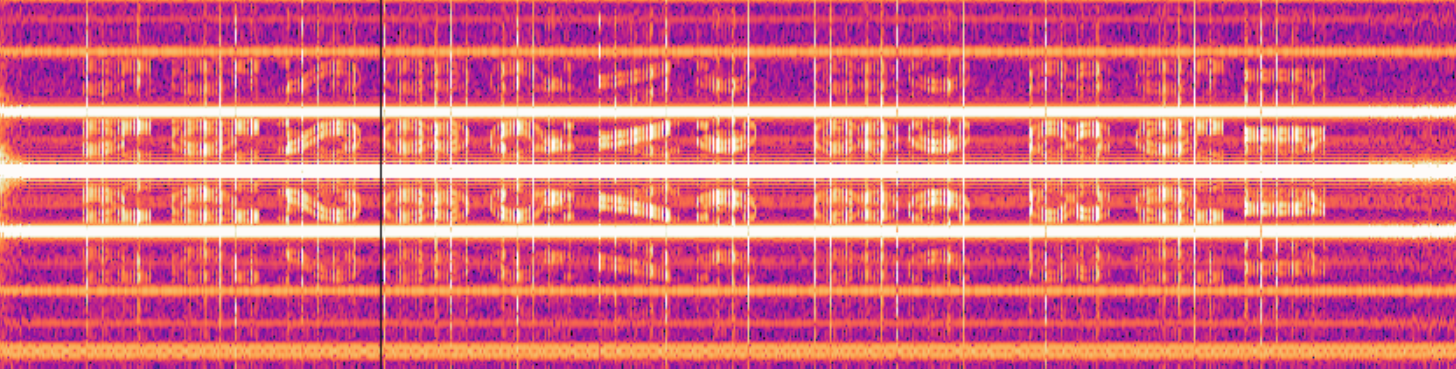

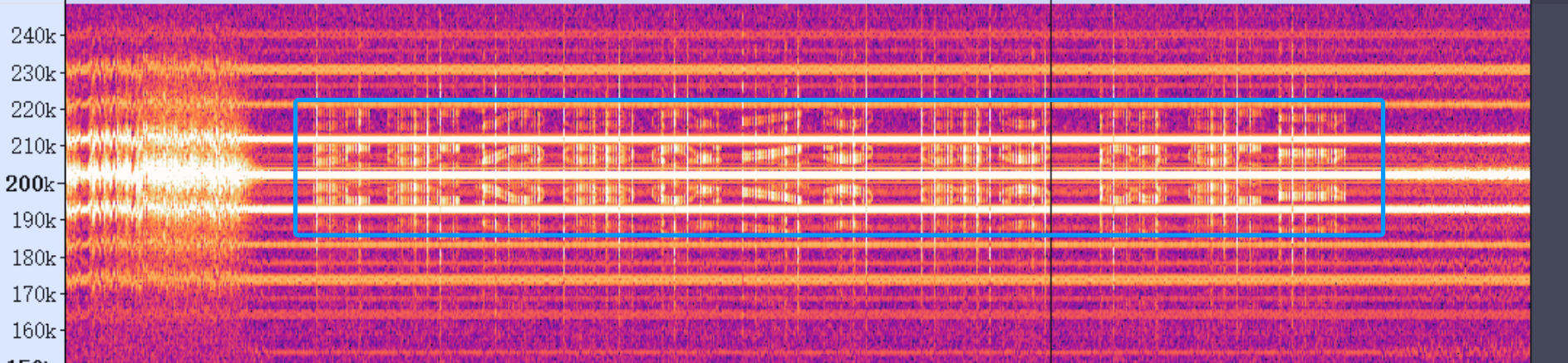

得到一个rar包，发现需要密码。在频谱图，往后拉：

密钥：1d3c8c7582dd，解压出flagflag{fa61cde1c174b-79a8-5cb9-3ea464e3dbca}
